Si Solderable Chip /Die

Bare silicon photodiode chips are available with or without flying leads for OEM applications with space constraints that require detector integration and optimization. They are ideal for precision metrology and analytical equipment use and can be bonded directly onto substrates.

Photoconductive (Low Capacitance) Photovoltaic (Low Noise, Low Dark Current)

Photoconductive (Low Capacitance)

Image	Datasheet	Model Number	Active Area [mm²]	Active Area Dimensions [mm]	Peak Wavelength [nm]	Responsivity @Peak [A/W]	Dark Current [nA]	Shunt Resistance [MΩ]	Capacitance [pF]	Rise Time [nS]	Package
	PDF	PDB-C601-1	1.05	1.88 x 0.56	950	0.7	-	150	10	10	Bare Die
		PDB-C601-2	1.05	1.88 x 0.56	950	0.7	7	150	10	10	Wire on Die
	PDF	SLSD-71N800	2.7	2.4 x 1.1	950	0.64	20	-	100	-	Wire on Die
	PDF	SLSD-71N100	11.3	4.9 x 2.3	950	0.64	10	-	400	-	Wire on Die
		PDB-C607-1	14.9	9.9 x 1.5	950	0.70	5	100	125	25	Bare Die

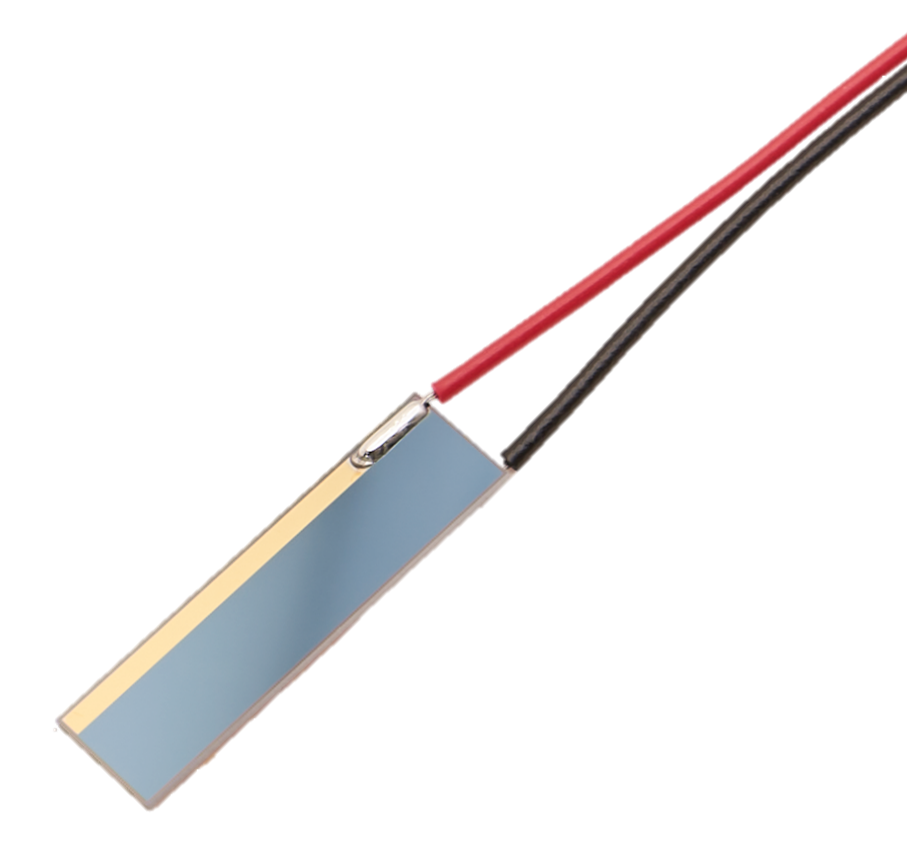

	PDF	PDB-C607-2	14.9	9.9 x 1.5	950	0.70	15	100	125	25	Wire on Die
	PDF	SLSD-71N200	20.5	5.1 x 4.0	950	0.72	10	-	700	-	Wire on Die
	PDF	SLSD-71N300	41.3	10.2 x 4.1	950	0.64	20	-	1,000	-	Wire on Die
		PDB-C609-1	42.4	7 x 6.1	950	0.62	10	10	240	30	Bare Die
	PDF	PDB-C609-2	42.4	7 x 6.1	950	0.62	20	10	240	30	Wire on Die

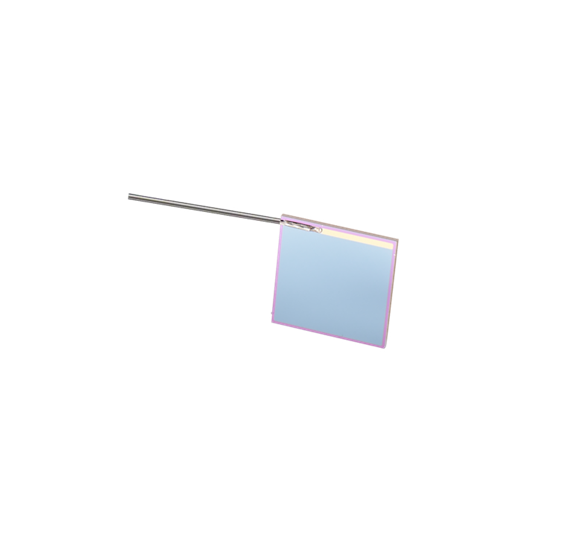

	PDF	PDB-C609-3	42.4	7 x 6.1	950	0.62	20	10	240	30	Wire on Die
	PDF	SLSD-71N400	45.2	25.1 x 1.8	950	0.63	20	-	1,000	-	Wire on Die
	PDF	PDB-C612-1	69.7	17.6 x 4.0	950	0.70	30	155	300	45	Bare Die
	PDF	PDB-C612-2	69.7	17.6 x 4.0	950	0.70	35	100	300	45	Wire on Die
		PDB-C613-1	88.3	9.7 x 9.1	950	0.69	35	1	350	50	Bare Die
	PDF	PDB-C613-2	88.3	9.7 x 9.1	950	0.69	40	1	350	50	Wire on Die
	PDF	SLSD-71N500	92.1	9.8 x 9.4	950	0.57	45	-	2,000	-	Wire on Die
	PDF	SLCD-61N5	96.1	9.9 x 9.4	850	0.64	-	-	2,000	-	Bare Die
	PDF	SLSD-71N600	107.5	25.0 x 4.3	950	0.72	55	-	1,800	-	Wire on Die
	PDF	SLSD-71N700	158.0	18.29 x 8.64	950	0.59	100	-	2,500	-	Wire on Die
		PDB-C615-1	231.6	25.2 x 9.2	950	0.69	230	-	775	150	Bare Die
	PDF	PDB-C615-2	231.6	25.2 x 9.2	950	0.69	350	-	775	150	Wire on Die

Typical Electro-Optical Parameters at T=25°C, unless otherwise specified

Photovoltaic (Low Noise, Low Dark Current)

Image	Datasheet	Model Number	Active Area [mm²]	Active Area Dimensions [mm]	Peak Wavelength [nm]	Responsivity @Peak [A/W]	Dark Current [nA]	Shunt Resistance [MΩ]	Capacitance [pF]	Rise Time [nS]	Package
	PDF	PDB-V601-1	1.05	1.88 x 0.56	950	0.69	1	250	250	300	Bare Die
		PDB-V601-2	1.05	1.88 x 0.56	950	0.69	7	250	250	300	Wire on Die
	PDF	PDB-V609-3	42.7	7 x 6.1	950	0.69	50	15	5,500	1,500	Buss Wire on Die
		PDB-V617-1	56.1	14.73 x 3.81	950	0.67	20	14	8,500	2,500	Bare Die
	PDF	PDB-V617-2	56.1	14.73 x 3.81	950	0.67	30	14	8,500	2,500	Wire on Die
		PDB-V612-1	71.0	17.6 x 4	950	0.70	30	15	9,000	2,800	Bare Die
	PDF	PDB-V612-2	71.0	17.6 x 4	950	0.70	35	15	9,000	2,800	Wire on Die
		PDB-V615-1	231.6	25.2 x 9.2	950	0.69	200	5	28,000	1,100	Bare Die
	PDF	PDB-V615-2	231.6	25.2 x 9.2	950	0.69	300	5	28,000	1,100	Wire on Die

Typical Electro-Optical Parameters at T=25°C, unless otherwise specified
